£16.95
Price Including VAT: £20.34

Green Pin Standard Dee Shackle with Safety Nut and Bolt Pin - 3.25t W.L.L - EN 13889 - [GT-GPSAD3.25]

In warehouse: 25

Available for 4 hour delivery: 2

For larger quantities, call our team
Supplied with Proof Load Certificate - Working Load Limit (WLL): 3.25 tons - BS EN 13889 - EN 10204 Type 2.1 and Type 3.1

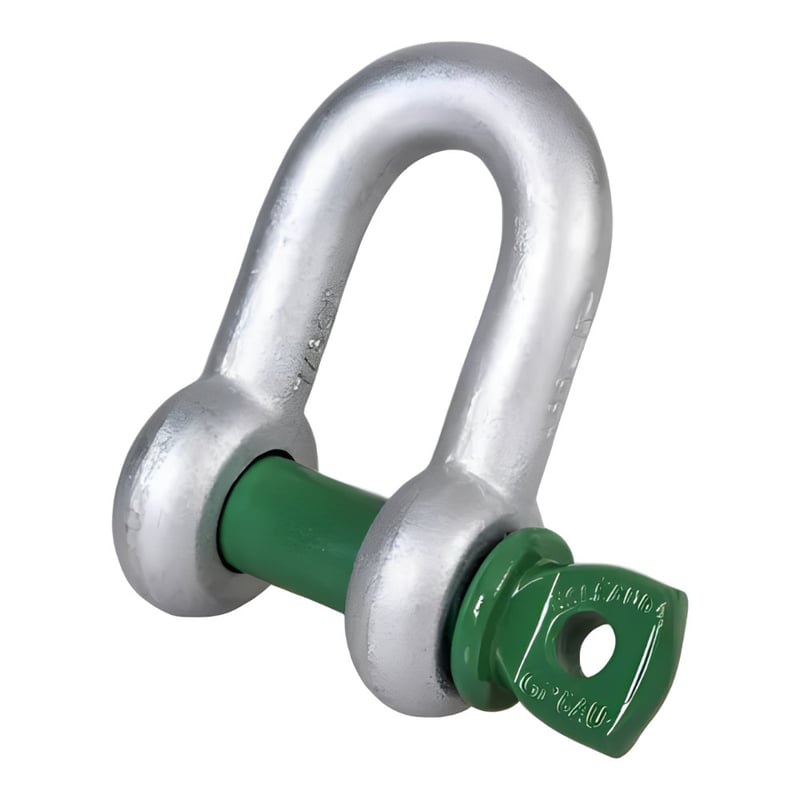

The Green Pin® Standard Dee Shackle SC is a premium lifting shackle designed for secure connections in lifting, rigging and load restraint applications. Featuring a screw collar pin for quick installation and removal, it is ideal for situations where equipment is assembled and dismantled regularly.

Manufactured from high-tensile Grade 6 steel and hot dip galvanised for long-lasting corrosion resistance, this dee shackle is suitable for demanding industrial, construction, marine and offshore environments. Its straight-sided design is intended for single-leg lifting systems and in-line loading.

Key Features:

  • High-strength Grade 6 steel body and pin, quenched and tempered.
  • Screw collar pin allows fast and convenient assembly and disassembly.
  • Straight dee shackle design for single-leg lifting applications.
  • Hot dip galvanised finish provides excellent corrosion protection.
  • Concealed thread design helps reduce wear on wire ropes.
  • Working Load Limit (WLL): 3.25 tons
  • Minimum Breaking Load (MBL) of 6 times the Working Load Limit.
  • Suitable for temperatures from -40°C to +200°C.
  • Widely used in lifting, rigging, marine, offshore and industrial environments.

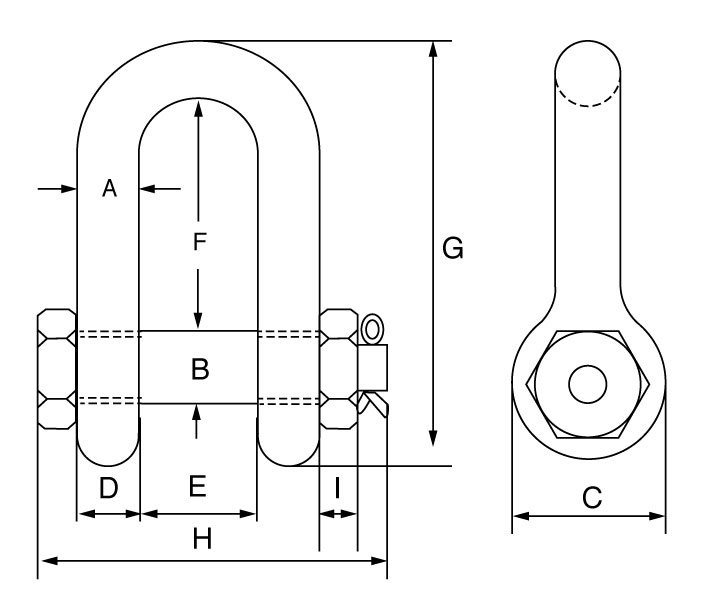

  • Size:
    • Length: 97 mm
    • Width: 89 mm
    • Depth: 40 mm
    • Opening length: 27 mm
UK Regulations & Certifications:
  • BS EN 13889 – Forged steel shackles for general lifting purposes.
  • UKCA / CE
  • EN 10204 Type 2.1 and Type 3.1
  • DNVGL-ST-0378
  • ASME B30.26 complian
